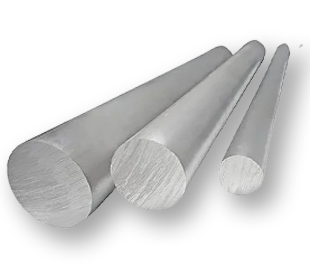

Aluminum 1060 bars are an aluminum alloy bar composed primarily of aluminum (over 99%) with small amounts of other elements such as copper. Recognized for their excellent formability, high corrosion resistance and moderate strength properties, 1060 aluminum bars have become popularly used across industrial applications including electrical components, utensils and architectural trim - as they offer excellent weldability as well as being easily machineable making them an attractive manufacturing process option.
Aluminium 1060 bars stand out with their impressive corrosion resistance, making them suitable for applications where moisture or harsh chemicals may be exposed, such as the marine and chemical processing industries. Furthermore, their exceptional resistance means Aluminium 1060 bars can withstand changing weather conditions without succumbing to degeneration.
Aluminium 1060 bars stand out with their exceptional thermal and electrical conductivity, which makes them especially suitable for industries requiring efficient heat transfer or electrical conductivity - including electrical wiring, heat exchangers and electronics manufacturing. Their superior thermal, electrical conductivity enables effective dissipation or transmission of signals for improved device and system performance as well as reliability.
Aluminium 1060 bars boast excellent formability, making them easily malleable into various shapes such as bars, sheets and plates. Their adaptable fabrication capabilities make these bars well suited to applications across industries including construction, automotive, aerospace and packaging.
Aluminium 1060 bars find many applications within the construction industry due to their lightweight nature, corrosion resistance, and ease of fabrication. Meanwhile in automotive production they're used in radiator core production, heat shield fabrication and body panels where their high thermal conductivity and formability makes their use highly highly advantageous.
Aluminum 1060 bars are widely utilized by aerospace industries for creating aircraft components like fuselage frames, wing ribs and interior panels due to their lightweight properties and compatibility with rigorous aerospace requirements. Furthermore, Aluminium 1060 bars have also proven indispensable in packaging industries due to their ability to ensure product integrity by resisting corrosion, thus guaranteeing their contents protection and preservation during transit.
Apple Steels is a renowned manufacturer and supplier of in Mumbai, India. Specializing in high-quality Aluminium 1060 bars, we stand as a trusted provider in the region, offering premium-grade products for various industrial applications. With a commitment to excellence, we ensure reliability and satisfaction in every order.
Melting and Casting
Steel and alloying metals are loaded into an electric arc furnace. Once in the furnace, the metal is heated to a specific temperature above its melting point, usually in excess of 2800°F.
Forming
Most cast steel is formed by hot rolling—the slab, bloom, or billet is heated and passed through large rollers, stretching out the steel into a longer, thinner form.
Heat treatment
Heat treatment strengthens rolled stainless steel by recrystallizing the deformed microstructure. Most stainless steel is heat treated by annealing.
Descaling
A rolled piece of stainless steel acquires a layer of oxidized “mill scale,” which needs to be washed away to restore a shiny surface finish.
Cutting or Machining
Stainless steel is cut to a specified shape and size. The stainless steel can be sheared with circular knives, sawed with high-speed blades, or blanked with punches.
| Bar Wire Standard | ASTM B221, B211, B565, B316, AMS 4121 2014 |
| Bar Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Round bar size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Bars Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Bar Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Tempers | Tempers range from dead soft annealed to ultra spring temper |
| Rolled Flat Bars Condition | Hardened & tempered, annealed |
| Cold Rolled Bar Technique | Stainless Steel Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Rounds Bar Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| STANDARD | WERKSTOFF NR. | UNS |
| Aluminium 1060 | - | A91060 |
| Grade | Fe | Si | Mg | Mn | Cu | Zn | Ti | Al |
| Aluminium 1060 | 0.15 - 0.20 | 0.10 - 0.15 | 0.01 - 0.03 | 0.01 - 0.03 | 0.01 - 0.05 | 0.01 - 0.03 | 0.020 - 0.030 | 99.60 |
| Mechanical Properties - Al 1060 | |||||||||||||||||||
| Alloy | Temper | UTS(Mpa) | % Elongation | ||||||||||||||||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm - 1.30 mm | 1.30 mm - above | |||||||||||||||
| 1060 | O | 55 | 75 | 25 | 25 | 30 | |||||||||||||
| H12 | 75 | 110 | 6 | 6 | 7 | ||||||||||||||
| H14 | 90 | 120 | 5 | 5 | 6 | ||||||||||||||
| H16 | 95 | 130 | 4 | 4 | 4 | ||||||||||||||
| H18 | 130 | --- | 3 | 3 | 3 | ||||||||||||||
