What Are Duplex Steel 2205 Bars?

Duplex Stainless Steel 2205 Bars are an extremely strong yet corrosion resistant stainless steel alloy known for its outstanding combination of strength and corrosion resistance. Composed primarily of chromium, molybdenum, and nitrogen elements, such as pitting corrosion resistance as well as stress corrosion cracking protection, Duplex 2205 bars find widespread application within industries including marine, chemical processing, oil & gas processing due to their excellent mechanical properties as well as resistance against harsh environments.

Duplex Stainless Steel 2205 Bars are widely renowned for their superior corrosion resistance, making them suitable for applications in harsh environments like marine and chemical industries. Composed of chromium, molybdenum and nitrogen elements for maximum resistance against stress corrosion cracking and pitting corrosion issues.

Duplex Steel Bars

Duplex Steel 2205 Bars offer moderate to good machinability. While tougher to machine compared with austenitic stainless steels, proper tooling and machining techniques can still yield satisfactory results. Their machinability is further increased by an annealed condition.

Duplex Stainless Steel 2205 Bars have outstanding weldability properties. They demonstrate great weldability across a range of standard welding processes such as GTAW, GMAW and shielded metal arc welding (SMAW), though preheating and post-weld heat treatment must be carried out correctly to avoid embrittlement or intergranular corrosion issues.

Duplex Steel 2205 Bars find numerous uses across various industries such as oil and gas, chemical processing and pulp and paper production. Common applications for Duplex 2205 bars are pressure vessels, heat exchangers, pipelines and storage tanks where corrosion resistance and mechanical strength are key considerations.

Duplex Stainless Steel 2205 Bars have become indispensable tools due to their exceptional properties, being used across numerous applications from offshore platforms and desalination plants, chemical processing equipment and automotive components to bridges, buildings and infrastructure projects requiring durability and corrosion resistance.

Apple Steels is a prominent manufacturer and supplier of Duplex Steel 2205 Bars in Mumbai, India. We are a leading name in the industry with a commitment to quality and reliability, providing high-grade duplex steel bars to meet diverse industrial needs.

Manufacturing Process Of Duplex Steel Bars

Casting

Melting and Casting

Steel and alloying metals are loaded into an electric arc furnace. Once in the furnace, the metal is heated to a specific temperature above its melting point, usually in excess of 2800°F.

Forming Round Bar

Forming

Most cast steel is formed by hot rolling—the slab, bloom, or billet is heated and passed through large rollers, stretching out the steel into a longer, thinner form.

Heat Treatment

Heat treatment

Heat treatment strengthens rolled Duplex Steel by recrystallizing the deformed microstructure. Most Duplex Steel is heat treated by annealing.

Descaling

Descaling

A rolled piece of Duplex Steel acquires a layer of oxidized “mill scale,” which needs to be washed away to restore a shiny surface finish.

Cutting Round Bar

Cutting or Machining

Duplex Steel is cut to a specified shape and size. The Duplex Steel can be sheared with circular knives, sawed with high-speed blades, or blanked with punches.

Specification Of Duplex Steel 2205 Rods

Standards : ASTM A276 / ASME SA276
Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI
Wire : Thickness starting from 0.05mm
Round bar size : Diameter: 3-~800mm
Hex Bar size : 2-100mm A/F
Flat bar size : Thickness: 2 -100mm / Width: 10 to 500mm
Square bar size : 4 to 100mm
Rectangular Bars Size : 33 x 30mm to 295 x 1066mm
Hollow Bar : 32mm OD x 16mm ID to 250mm OD x 200mm ID
Tolerance : H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish

Types Of Duplex Steel Bars, Round Bars

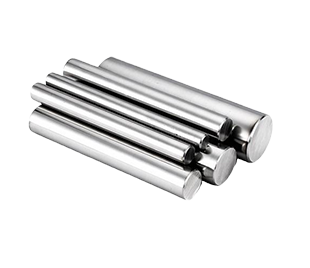

Duplex Steel Round Bar

Round Bar

Duplex Steel Hex Bar

Hexagonal Bar

Duplex Steel Square Bar

Square Bar

Other Types Of Duplex Steel Rods

  • Duplex Steel Precision Round Bars
  • Duplex Steel 2205 Polished Bar
  • UNS S32205 Bright Round Bars
  • Duplex Steel Hot Rolled Bar
  • ASTM A276 Duplex Steel Forged Bar
  • UNS S32205 Round Bar
  • Duplex Steel 2205 Cold Drawn Bar
  • Duplex Steel Forged Bar
  • Duplex Steel Rectangular Bar

Duplex Steel Bars Equivalent Grades

STANDARD UNS WERKSTOFF NR.
Duplex S32205 S32205 1.4462

Chemical Composition of Duplex Steel Bars

Grade C Mn Si P S Cr Mo Ni N Fe
S32205 0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 21.0 – 23.0 2.50 - 3.50 4.50 – 6.50 0.8 – 0.20 63.54 min

Mechanical Properties of Duplex Steel Bars

Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
7.805 0.285 1420 – 1465 2588 – 2669

Duplex Steel Bars Technical Information

Duplex Steel Rods Industrial Application

Electrical Industry

Automotive Industry

Construction Industry

Defence Industry

Pharmaceutical Industry

Petroleum Industry

Petrochemical Industry

Milk & Dairy Industry
